Specialized Status 170 2 Obsidian/Dune White

$5,200.00
Availability: In stock

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

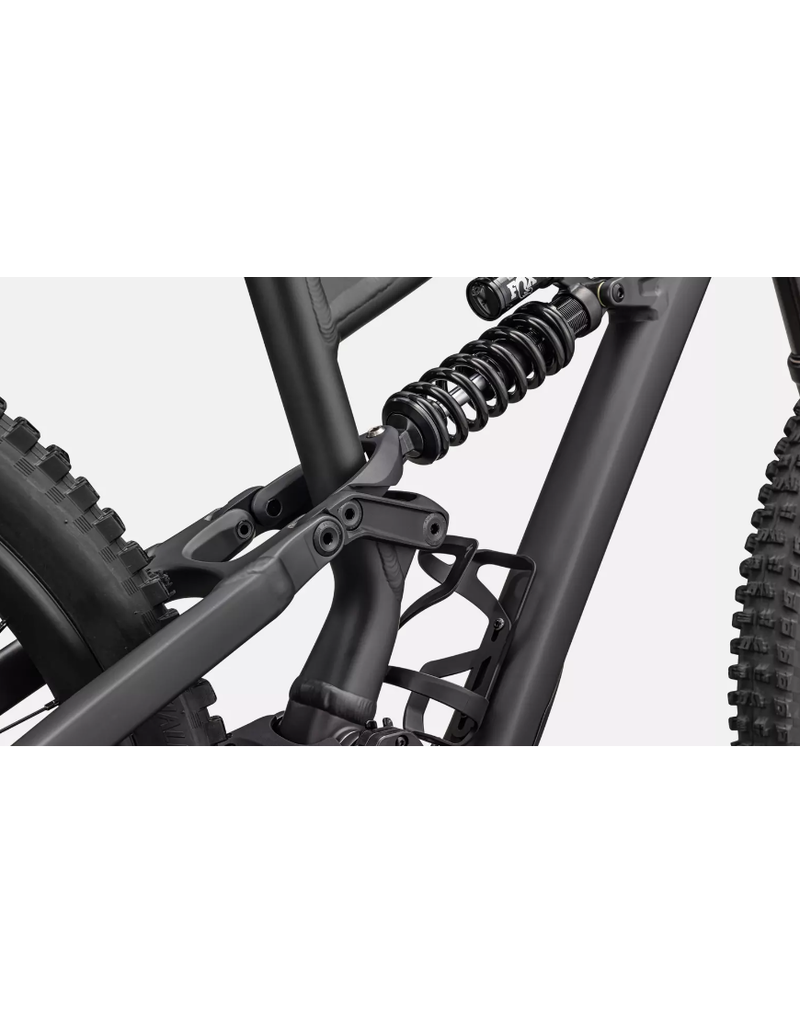

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • New, more durable alloy rims
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
  • Curated parts spec for your desired ride experience

Technical Specifications



Frameset

Frame

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm

Fork

FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel

Cockpit

Saddle

Bridge Comp, Hollow Cr-mo rails, 143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width

Grips

Deity Knuckleduster

Brakes

Front Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Drivetrain

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Chain

Shimano Deore M6100, 12spd

Crankset

Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm

Wheels & Tires

Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes

DT Swiss Industry

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Inner Tubes

Standard, Presta valve

Product Details

Product ID

221254

Weight

Weight

15.56 kg (34 lb, 4.9 oz)

Weight Size

S3

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry


  S1 S2 S3 S4 S5
Crank Length 165mm 165mm 165mm 165mm 170mm
Handlebar Width 780mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 143mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 150mm 170mm 170mm 190mm
Stack (low) 620mm 625mm 634mm 643mm 652mm
Stack (high) 616mm 620mm 629mm 638mm 647mm
Reach (low) 420mm 445mm 470mm 495mm 520mm
Reach (high) 426mm 451mm 476mm 501mm 526mm
Headtube Length 95mm 100mm 110mm 120mm 130mm
Headtube Angle (low) 63.5° 63.5° 63.5° 63.5° 63.5°
Headtube Angle (high) 64° 64° 64° 64° 64°
BB Height (low) 342mm 342mm 342mm 342mm 342mm
BB Height (high) 350mm 350mm 350mm 350mm 350mm
BB Drop (low) 34mm 34mm 34mm 34mm 34mm
BB Drop (high) 26mm 26mm 26mm 26mm 26mm
Trail (low) 138mm 138mm 138mm 138mm 138mm
Trail (high) 133mm 133mm 133mm 133mm 133mm
Fork Length (full) 581mm 581mm 581mm 581mm 581mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Centre 762mm 789mm 819mm 848mm 878mm
Chainstay Length (low) 432mm 432mm 432mm 437mm 437mm
Chainstay Length (high) 436mm 436mm 436mm 441mm 441mm
Wheelbase 1193mm 1221mm 1250mm 1285mm 1314mm
Top-tube Length (horizontal) 554mm 595mm 635mm 676mm 716mm
Bike Standover Height 735mm 735mm 742mm 748mm 752mm
Seat Tube Length 390mm 400mm 420mm 440mm 465mm
Seat Tube Angle (low) 77° 77° 77° 77° 77°
Seat Tube Angle (high) 77.6° 77.6° 77.6° 77.6° 77.6°
