Specialized Turbo Levo 4 Comp Carbon Gloss Orange Tint Over Silver Dust / Dark Navy

$12,900.00
Availability: In stock

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.



Technical Specifications

E-Bike

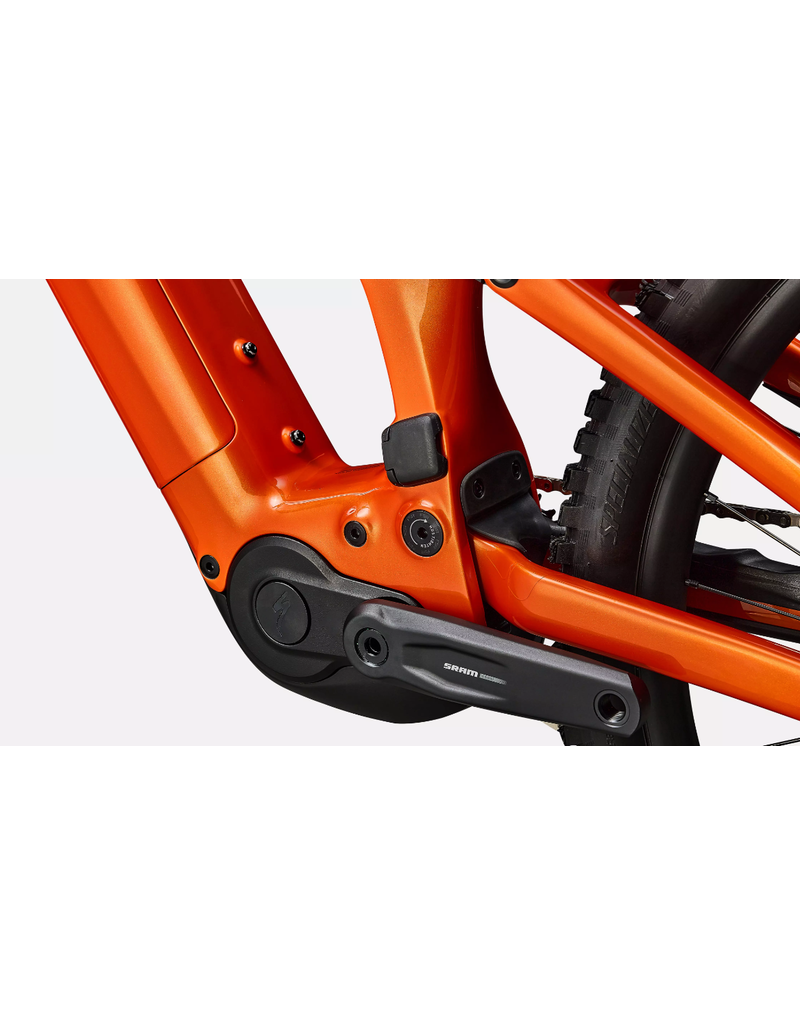

Motor All New Specialized 3.1 Motor, 101Nm torque, 666W power

Battery 840wh battery

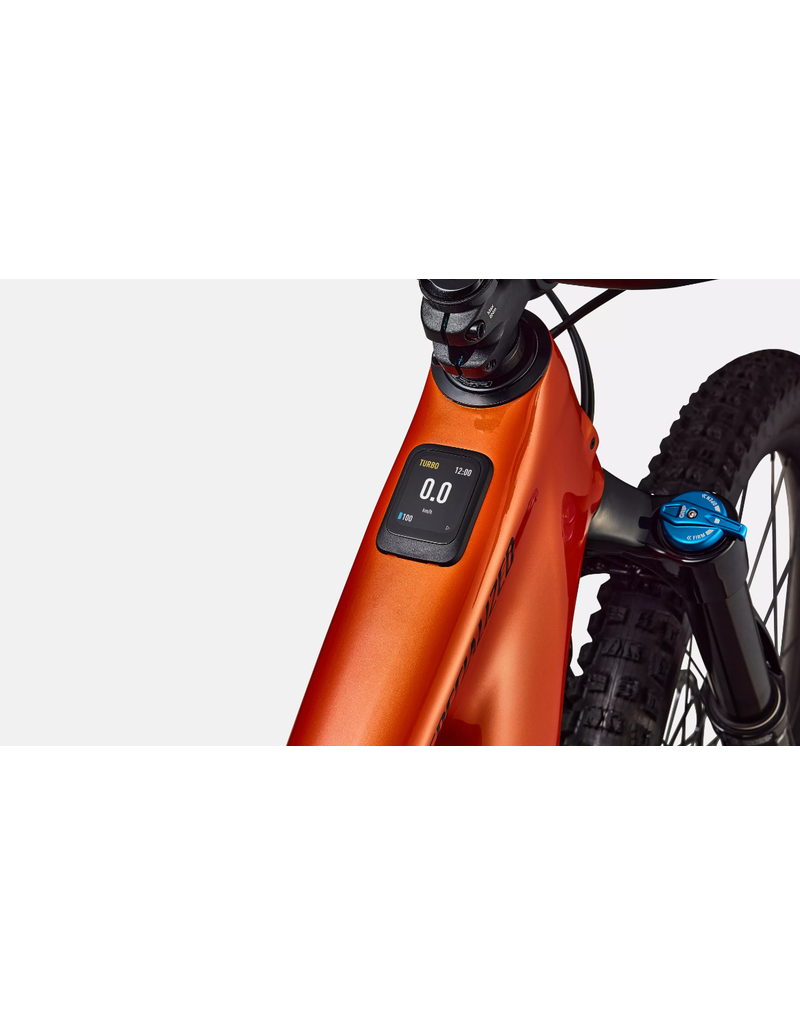

UI/Remote All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger Specialized 4amp charger



Frameset

Frame All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder Alloy, 38.6mm



Suspension

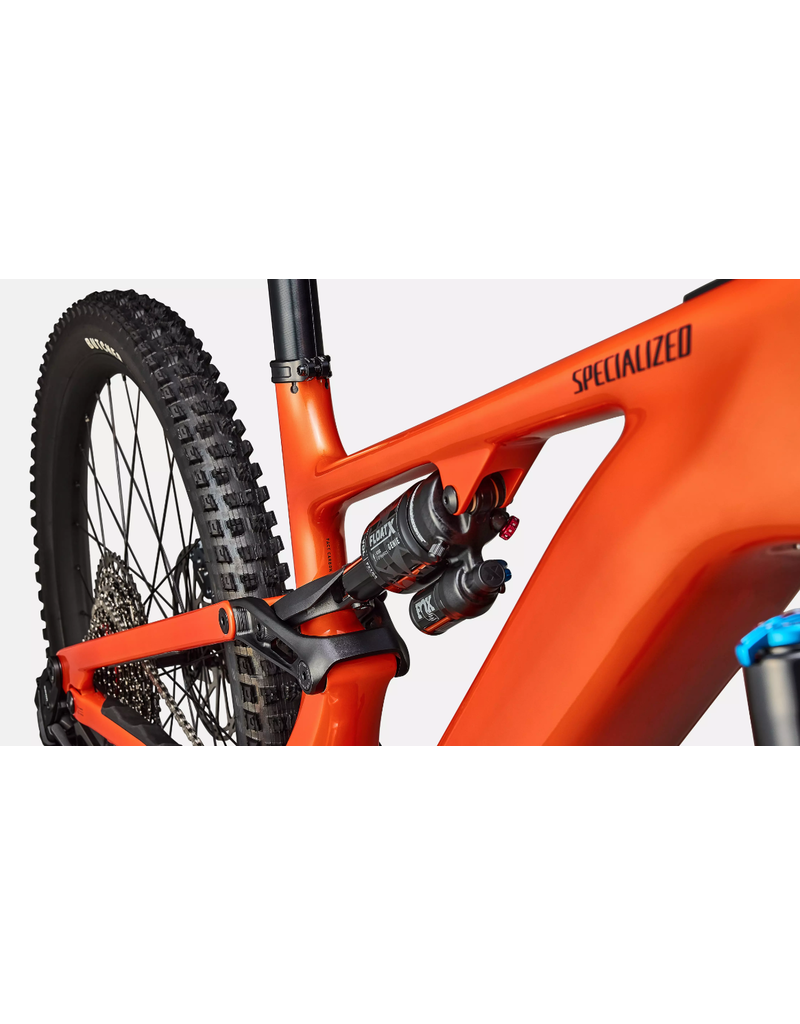

Rear Shock FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment

Fork FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel



Brakes

Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor

Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor



Drivetrain

Shift Levers SRAM AXS POD Controller

Rear Derailleur SRAM S1000 Eagle Transmission Derailleur

Cassette SRAM 1270 Transmission Cassette, 12 Spd,10-52t

Chain SRAM GX Eagle Transmission Flattop Chain

Crankset SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Chainrings SRAM T-type ring, 34T, 104 BCD, steel



Wheels & Tires

Rims Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready

Front Hub Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes DT Swiss Industry

Front Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"





Cockpit

Stem Alloy Trail Stem, 35mm bar bore

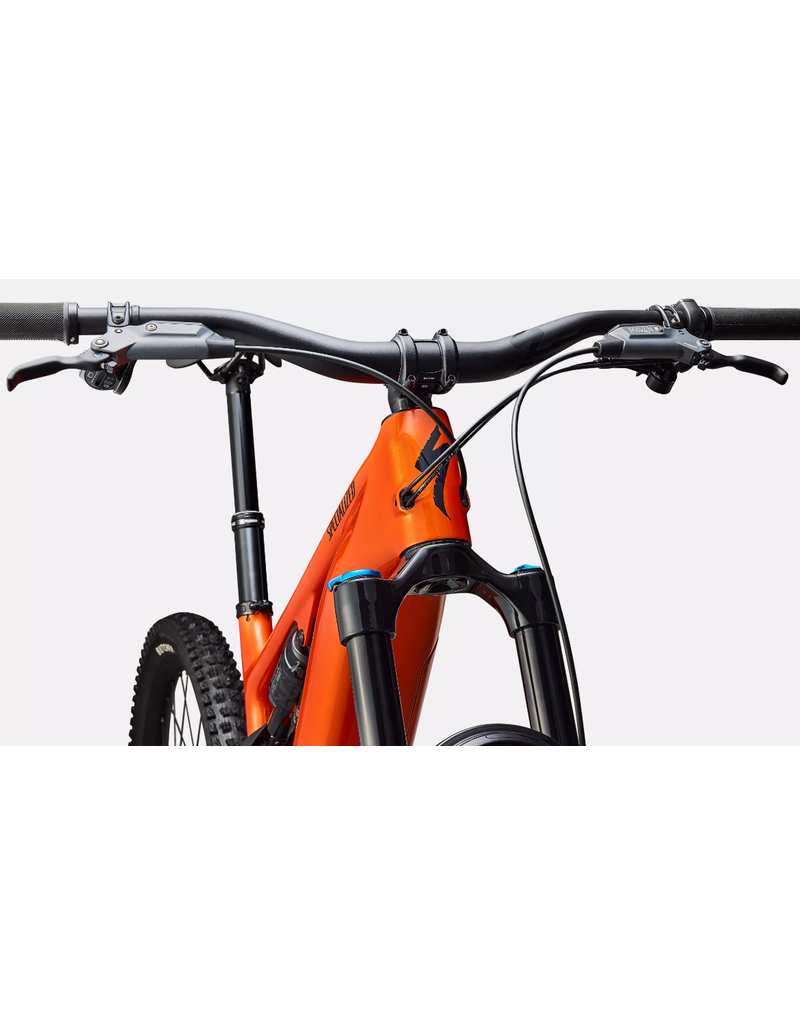

Handlebars Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width

Grips Specialized Trail Grips

Saddle Bridge Comp, Hollow Cr-mo rails

SeatPost Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm



Accessories

SWAT internal downtube storage



Product Details

Product ID 218708

Compliance Certification As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight 24.41 kg (53 lb, 13.0 oz)

Weight Size S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.



Geometry


  S2 S3 S4 S5 S6
Crank Length 155mm 155mm 155mm 155mm 155mm
Handlebar Width 780mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 170mm 190mm 190mm 190mm
Stack 618mm 626mm 638mm 652mm 667mm
Reach 435mm 455mm 480mm 505mm 535mm
Headtube Length 95mm 103mm 117mm 132mm 149mm
Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
BB Height 350mm 350mm 350mm 350mm 350mm
BB Drop 29.5mm 29.5mm 29.5mm 29.5mm 29.5mm
Trail 132mm 132mm 132mm 132mm 132mm
Fork Length (full) 577mm 577mm 577mm 577mm 577mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Centre 765mm 789mm 820mm 851mm 888mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1200mm 1223mm 1254mm 1286mm 1323mm
Top-tube Length (horizontal) 578mm 599mm 627mm 655mm 689mm
Bike Standover Height 753mm 754mm 753mm 758mm 761mm
Seat Tube Length 390mm 405mm 425mm 445mm 465mm
Seat Tube Angle 77° 77° 77° 77° 77°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 274mm 289mm 313mm 337mm 357mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm
