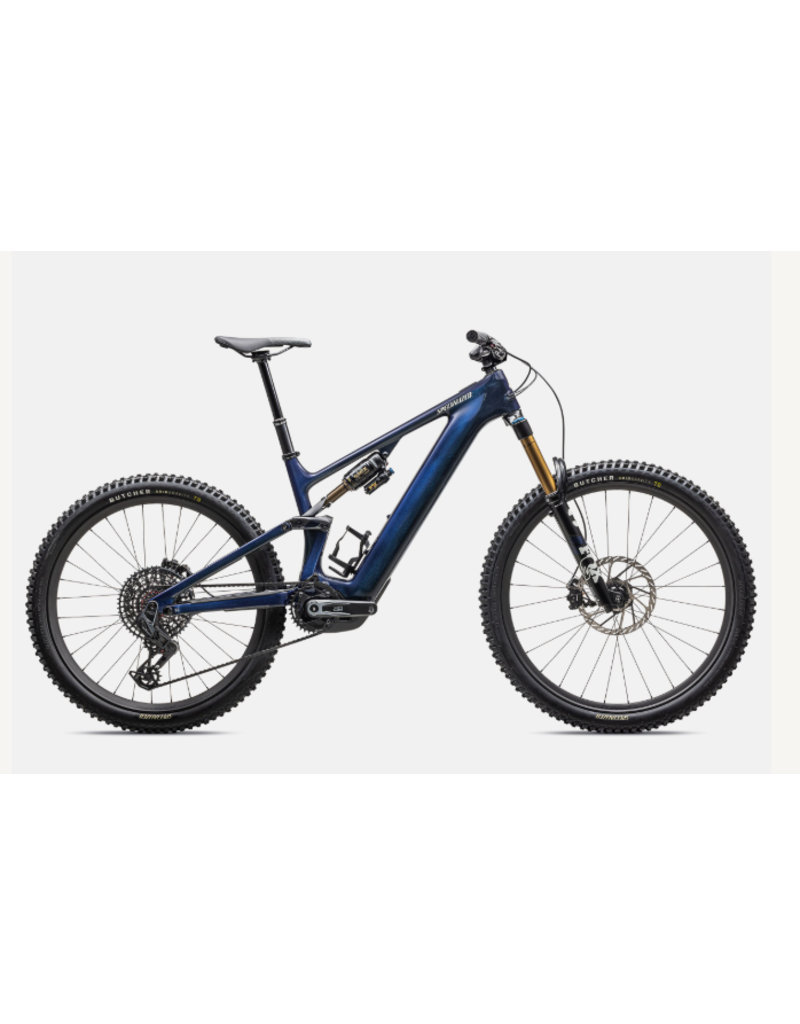

Specialzied Turbo Levo 4 Pro Gloss Blue Onyx / Dark Navy / Birch

Home / Specialzied Turbo Levo 4 Pro Gloss Blue Onyx / Dark Navy / Birch
Specialized Specialzied Turbo Levo 4 Pro Gloss Blue Onyx / Dark Navy / Birch
Specialized Specialzied Turbo Levo 4 Pro Gloss Blue Onyx / Dark Navy / Birch
$17,900.00
+ -
Add to cart
Availability: In stock

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

Technical Specifications

E-bike UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Motor All New Specialized 3.1 Motor, 101Nm torque, 666W power
Charger Specialized 4amp charger
Battery 840wh battery
Frameset
Seat Binder Alloy, 38.6mm
Frame All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
Fork FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Rear Shock FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Brakes
Front Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Chainrings SRAM 34T T-Type chainring, 104 BCD, steel
Shift Levers SRAM AXS POD Controller
Chain SRAM X0
Rear Derailleur SRAM X0 Eagle Transmission
Crankset SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
Cassette SRAM XO 1295, 12 speed, 10-52
Wheels & tires
Rear Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Front Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
Rear Wheel Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h

Cockpit
SeatPost Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Saddle Bridge Mimic Expert, Hollow Ti rails
Grips Deity Lockjaw grips
Handlebars RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Stem Industry 9 Mountain stem, 35mm clamp, 40mm length
Accessories
SWAT internal downtube storage
Compliance Certification As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight 23.94kg (52 lb, 12.5 oz)
Weight Size S4

Geometry


  S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155
Handlebar Width 800 800 800 800 800
Stem Length 40 40 40 40 40
Saddle Width 155 143 143 143 143
Seatpost Length 125 160 185 213 213
Stack 618 626 638 652 667
Reach 435 455 480 505 535
Headtube Length 95 103 117 132 149
Headtube Angle 64.5 64.5 64.5 64.5 64.5
BB Height 350 350 350 350 350
BB Drop 29.5 29.5 29.5 29.5 29.5
Trail 132 132 132 132 132
Fork Length (full) 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44
Front Center 765 789 820 851 888
Chainstay Length 435 435 435 435 435
Wheelbase 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 578 599 627 655 689
Bike Standover Height 753 754 753 758 761
Seat Tube Length 390 405 425 445 465
Seat Tube Angle 77 77 77 77 77
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80
